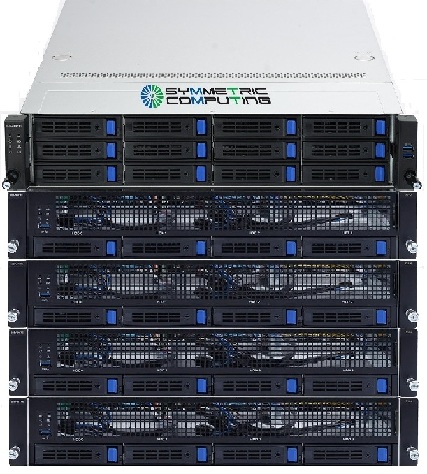

Ada Departmental Supercomputer

Ada is a hybrid supercomputer consistng of a large memory head node and 2 to 10 compute nodes with 4 GPUs each. It includes a 4TB global NVMe filesystem and a Python based distributed computing environment. Ada is perfect for Artificial Intelligence, Machine Learing, Bioinformatics, and scientific and technical applications requiring support for large datasets. It is optimized for running Pytorch. Designed for computationally intensive high-performance computing, the maximum Ada configuration has 768 CPU cores, 40 GPUs, and 800TB of disk array storage.

Features

  • 1 head node plus 2 to 10 compute nodes (maximum 12 CPUs and 40 GPUs)
  • AMD EPYC 7713 Processors (64 cores/128 threads)
  • AMD Radeon Instinct MI210 or MI100 GPUs
  • 4TB 3200 MHz DDR4 ECC Memory head node
  • 512GB or 1TB 3200 MHz DDR4 Memory per compute node
  • 200Gb/s Broadcom Ethernet node interconnect
  • 4TB on-board M.2 NVMe SSD head node
  • 1TB on-board M.2 NVMe SSD compute node
  • 12x 3.5" SATA/SAS drive bays head node
  • 4x 3.5" SATA/SAS drive bays compute node
  • 2x 1Gb/s LAN ports
  • 2000W redundant PSU Head node
  • 2200W redundant PSUs Compute nodes
  • 6U-22U Standard 19 inch Rack Mountable
  • Linux OS (SUSE 15)

  • Maximum Combined GPU Floating Point Performance:
  • 7240 TFLOPS FP16, 904 TFLOPS FP32 and FP64
  • 1812 TFLOPS Matrix FP32 and FP64
  •

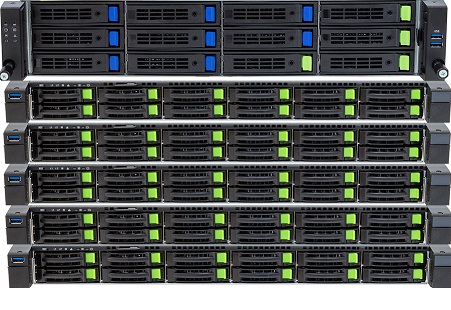

    Midframe Departmental Mainframe

    A new generation mainframe class computer with large shared memory and many cores that is departmental sized with the ability to replace traditional mainframes in many applications. It is perfect for In-memory Databases, Big Data and Artificial Intelligence, and for traditional enterprise computing applications with large in-memory needs. The Midframe includes a 4TB global NVMe filesystem and a Python based distributed computing environment. With the maximum 6 node configuration, it supports 768 cores (1536 threads), 18TB memory (6TB globally shared) and 72 disk drive bays (1PB). It can optionally include 3 GPUs in each of the 5 worker nodes, allowing for a maximum of 15 GPUs.

    Features

  • 4 to 6 nodes (maximum 12 CPUs, 15 GPUs option, and 72 drives)
  • AMD EPYC 7713 Processors (64 cores/128 threads), two per node
  • AMD Radeon Instinct MI210 or MI100 GPUs (option)
  • 4TB (or 8TB) 3200 MHz DDR4 ECC memory head node, with 2TB (or 6TB) globally shared
  • 1TB or 2TB 3200 MHz DDR4 ECC memory each worker node
  • 200 Gb/s InfiniBand node interconnect
  • 4TB on-board M.2 NVME SSD head node
  • 1TB on-board M.2 NVME SSD worker node
  • 12x 3.5" SATA/SAS per node
  • 2x 1 Gb/s GbE LAN ports, 1 management LAN port each node
  • 2000W redundant PSUs per node
  • 8U-12U Standard 19 inch Rack Mountable
  • Linux-DSMP OS (SUSE 15)
  •

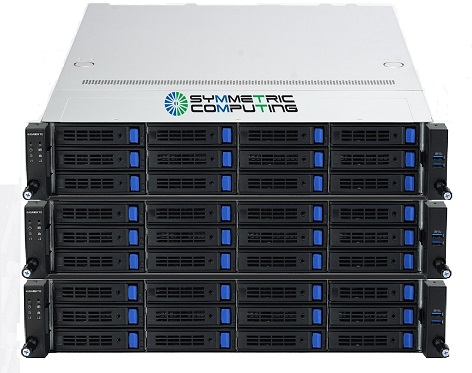

    Trio and Duet Large Memory Servers

    The Trio and Duet large memory servers provide up to 9TB and 6TB of globally shared memory respectively. The 6U Trio provides 384 cores (768 threads) and 36 SATA/SAS drive bays. The 4U Duet provides 256 cores (512 threads) and 24 drive bays. These servers include a 4TB global NVMe filesystem and a Python based distributed computing environment. The Trio and Duet Linux systems are ideal for hosting large in-memory databases, and Big Data and enterprise applications. These systems also have the option of adding up to three MI210 or MI100 GPUs per node tranforming them into powerful computational engines for machine learning, advanced statistics and heavy duty floating point processing.

    Features

  • 6 AMD EPYC 7713 Processors (total 384 cores/768 threads)
  • Optional AMD Radeon Instinct MI210 or MI100 GPUs (up to 9)
  • 4TB 3200 MHz DDR4 ECC memory each node, 6TB (or 9TB) globally shared
  • 200 Gb/s InfiniBand node interconnect
  • 4TB on-board M.2 NVME SSD head node
  • 1TB on-board M.2 NVME SSD worker node
  • 12x 3.5" SATA/SAS drive bays, each node
  • 2x 1 Gb/s LAN ports, 1 management LAN port
  • 2000W redundant PSUs, each node
  • 6U Standard 19 inch Rack Mountable
  • Linux-DSMP OS (SUSE 15)
  •
